High-pressure & low-pressure PUMPS OF TREATEMENT

For 50 years, more than 10 innovations have revolutionized your work processes. Mabi pumps are designed and produced in our factory.

Why use a MABI pump for injection treatment?

For you ! The new MABI pumps with custom-made options will give you unparalleled maneuverability and flexibility to this day.

Made for those who want to stay on the cutting edge of technology and save time on construction sites.

High-pressure pump

High-pressure pump

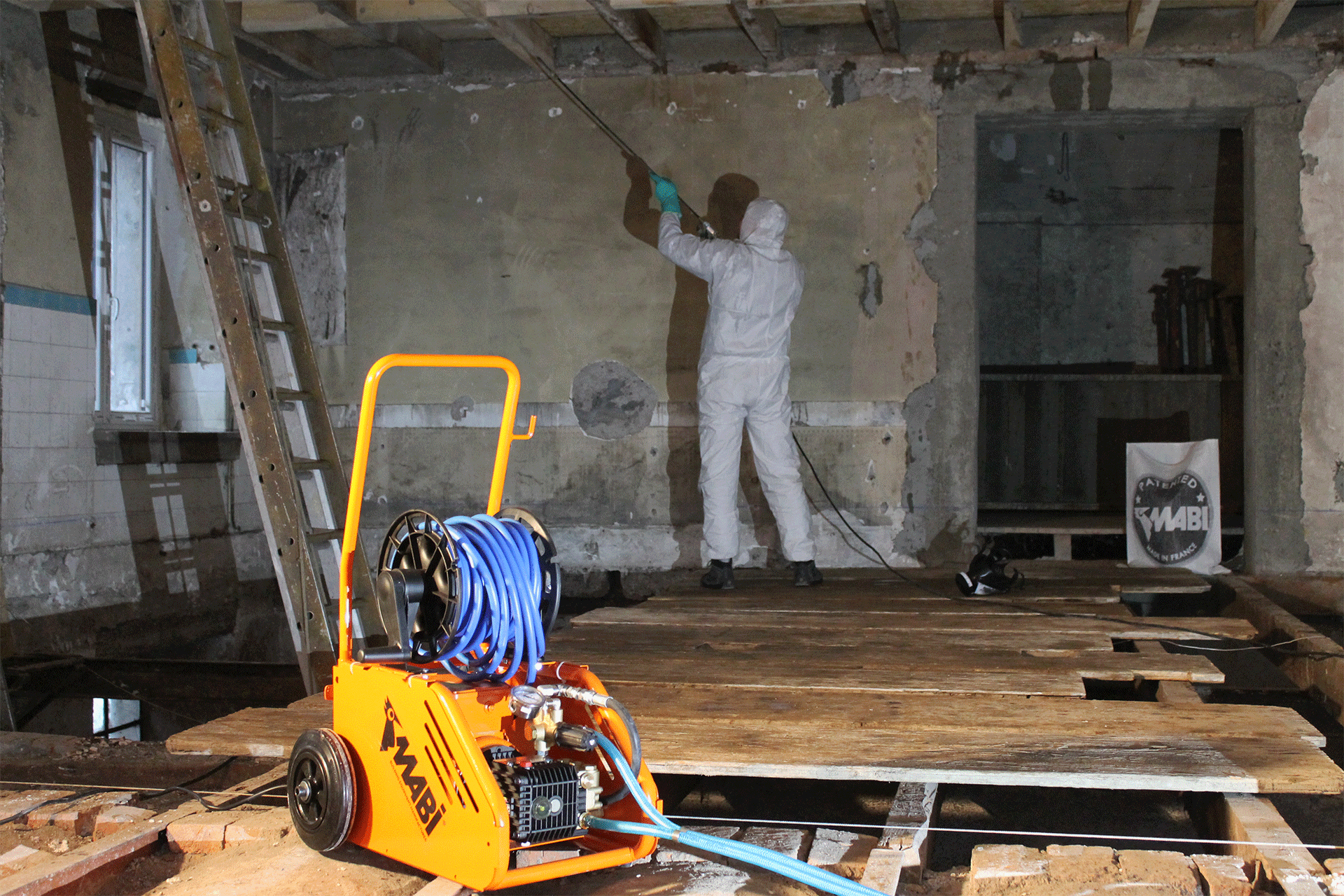

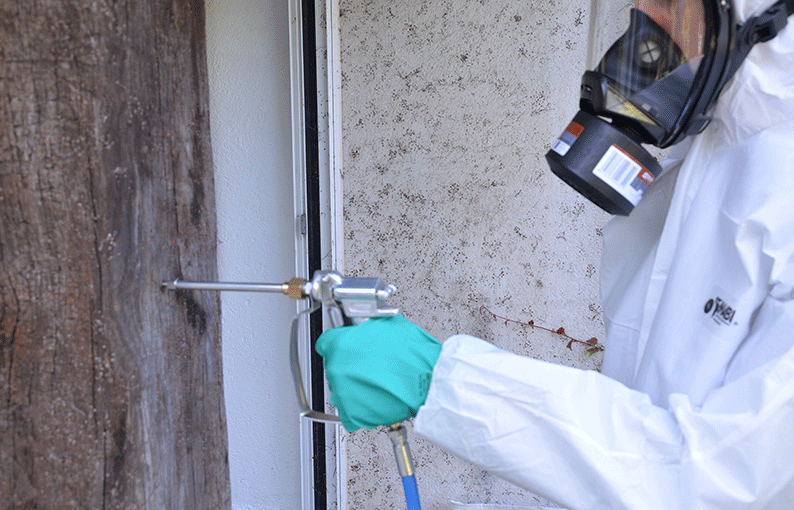

Liquid product injection and spraying for wood-treatment (solvent or water-based) and dry rot treatment.

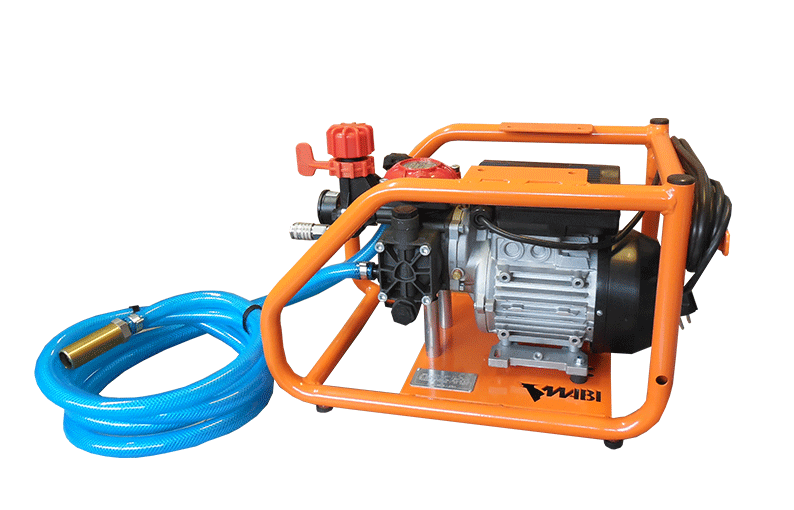

Low pressure pump

Low pressure pump

Spraying for pre-construction termite protection. Liquid product injection for rising damp treatment.

What are the advantages of MABI treatment pumps?

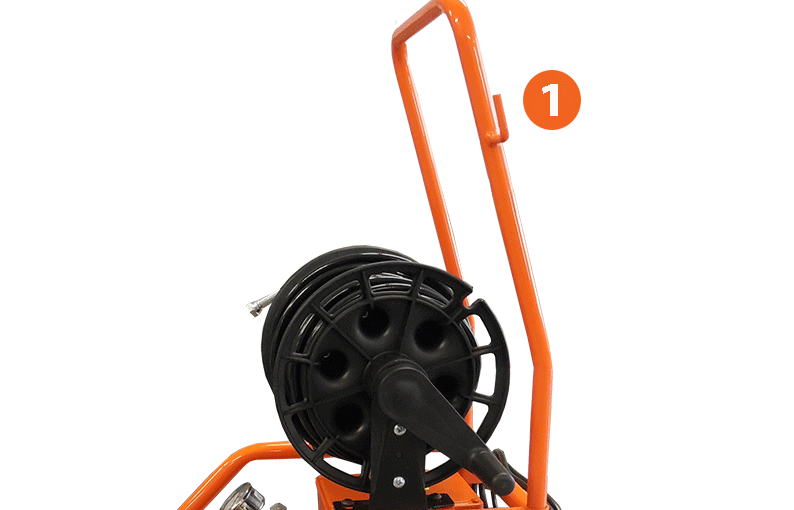

1. HANDLE: for a better comfort during transport, with a gun holder for easy storage and protection of the gun

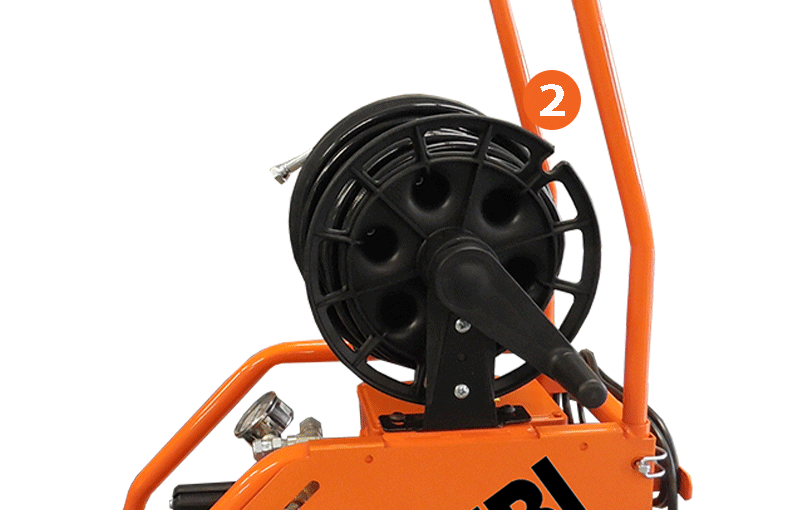

2.  INTEGRATED REEL: connected at the pump outlet, it facilitates the storage and protection of the hose

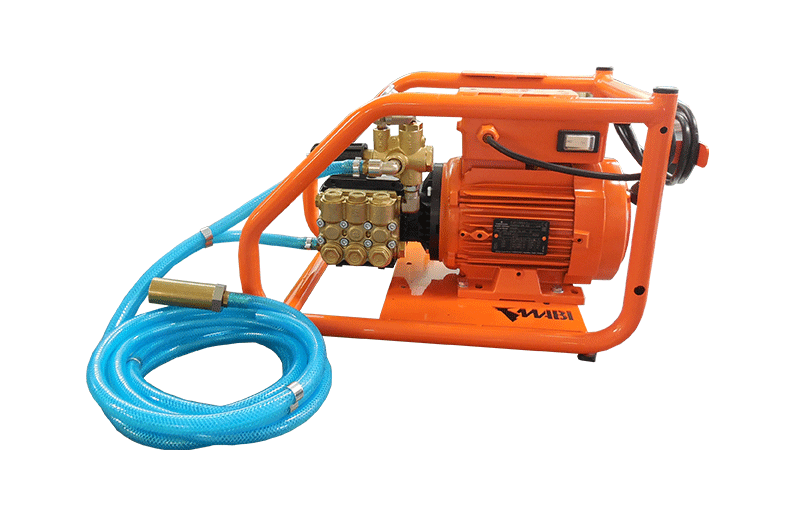

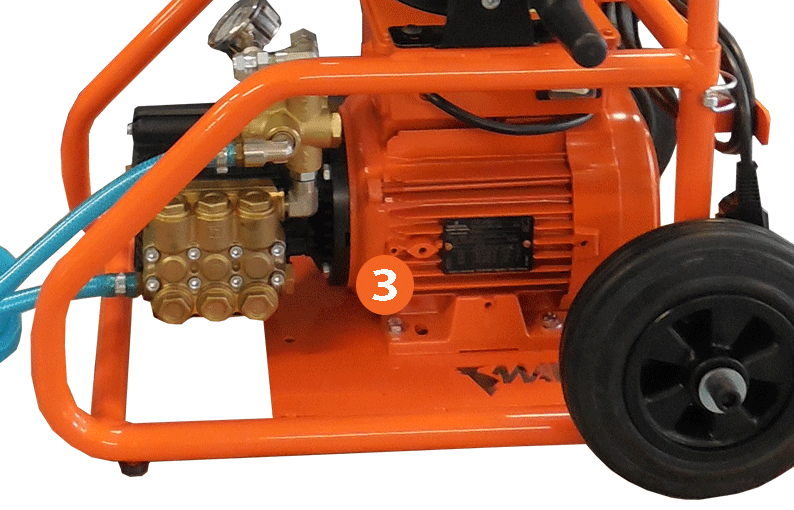

3. MULTI PRODUCTS: assembled with ceramic pistons, Viton armaments and Teflon seals for a better resistance to treatment products

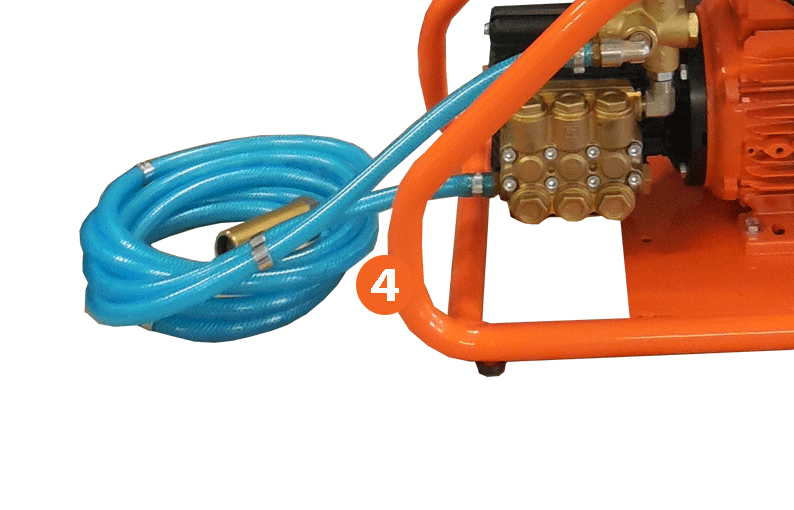

4.  STRAINER:  strainer in brass, filter in stainless steel

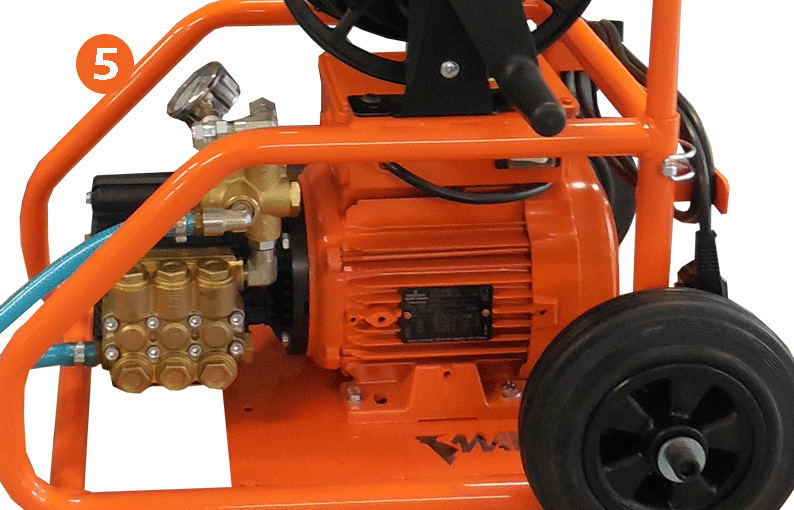

5. CHASSIS: compact and ergonomic, with potential for additional facilities

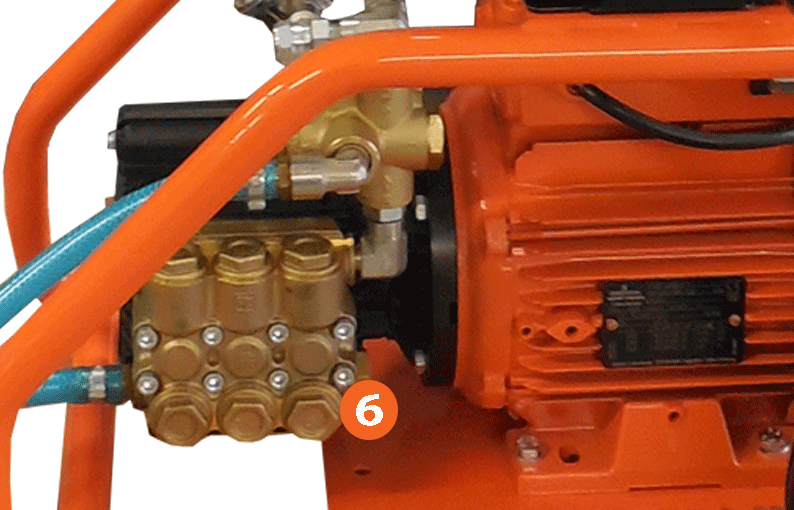

6. HIGH-END MOTORIZATION: strengthened winding for more performance and longevity

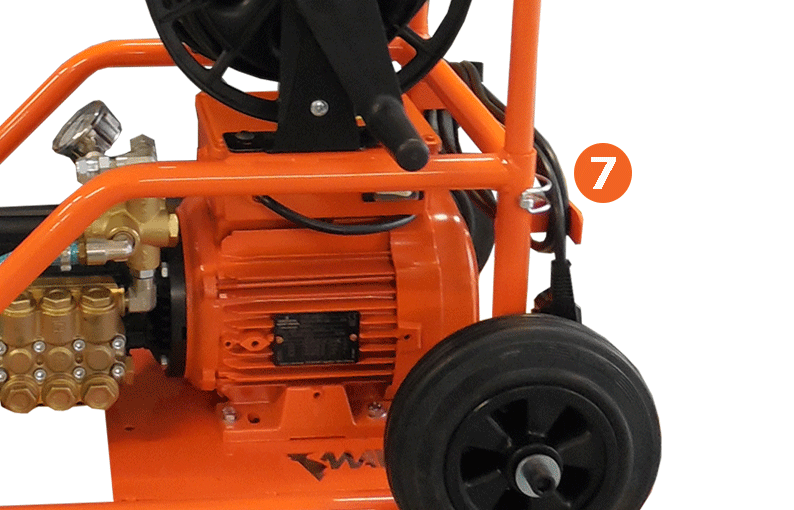

7. STORAGE CABLE: system facilitating the storage of the electric cable and 200 mm wheels to facilitate the movements on site

Choose your options! An adjustable treatment pump

How to choose a pump for injection treatment?

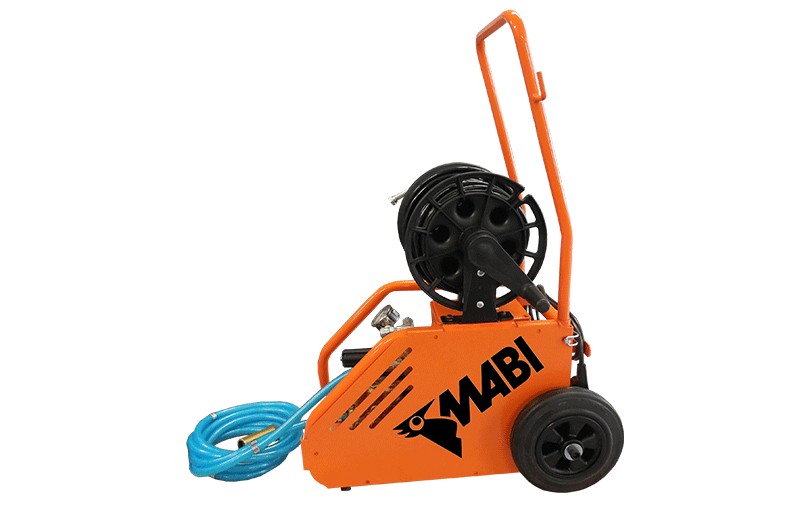

High-pressure pump of treatment 8L ECO MABI

  • PRESSURE : 90 BAR MAX
  • FLOW : 8 L / MIN
  • WEIGHT: 31 KG
  • DIMENSIONS : 32 X 52 X 31.5 CM
  • PROTECTION : IP44

Liquid product injection and spraying for wood-treatment (solvent or water-based) and dry rot

treatment. Liquid product injection for rising damp treatment. Anti-moss and facade water-repellent spraying.

High-pressure: interesting for spraying from a distance. Possibility to upgrade your pump thanks to its modular frame. The best-seller for the wood-treatment.

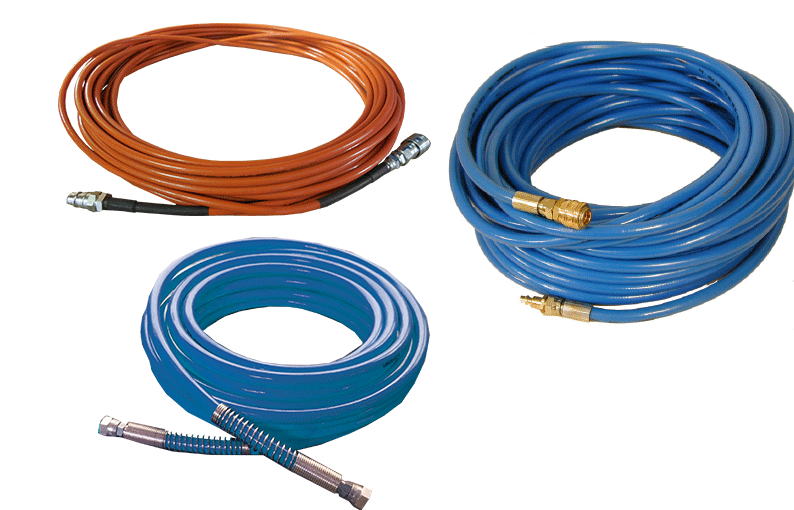

Available with kit : High-Pressure hose Ø3/16, High-Pressure injection/spraying gun, Male injection nozzle for injectors without head, Straight spray extension L= 30 cm, Spray nozzle 8L

The kits are available with or without quick couplings.

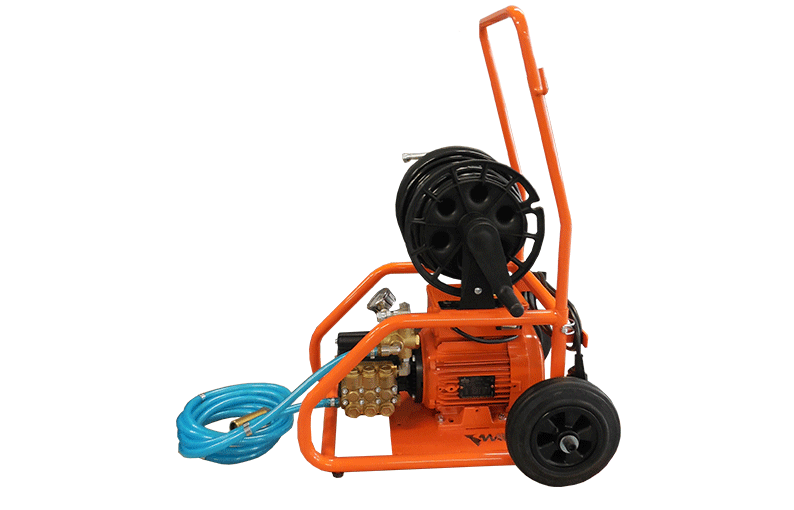

Wheel and handle option: Removable carrying handle with gun hook. Wheels diameter 200 MM

Reel option: PVC reel, possibility to store up to 25M HP hose. Supplied with the reel equipped on the pump.

Protective side option: for a lateral protection of the body pump. Possibility to customize the pump. Supplied with the sides equipped on the pump.

Demonstration video : Get started pump HP 8 ECO

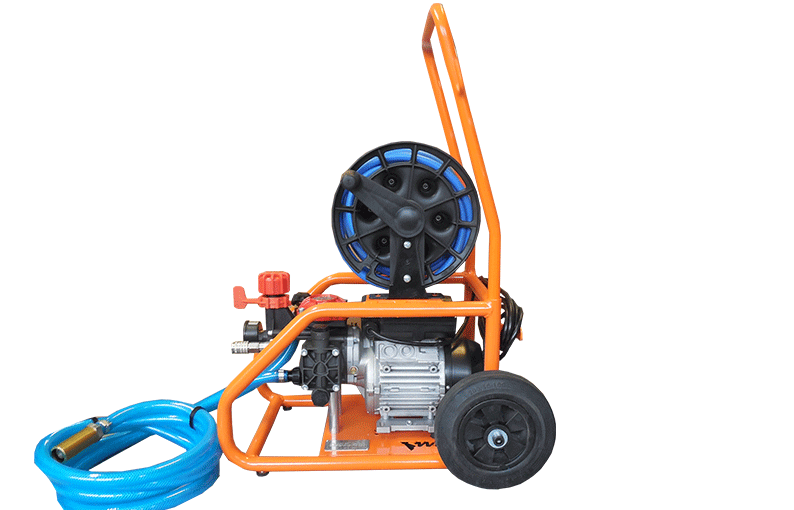

Low-pressur pump of treatment 25BP MABI

  • PRESSURE : 25 BAR
  • FLOW : 25 L / MIN
  • WEIGHT : 28 KG
  • DIMENSIONS : 32 X 52 X 31.5 CM
  • PROTECTION : IP44

Spraying for pre-construction termite protection. Liquid product injection for rising damp treatment.

Occasionally: Anti-moss and facade water-repellent spraying.

Liquid product injection and spraying for wood-treatment (solvent or water-based) and dry rot treatment.

High-flow. Possibility to use thicker products like for the pre-construction termite treatment. Easy care. Possibility to upgrade your pump thanks to its modular frame.

The kits are available with or without quick couplings.
Wheel and handle option: Removable carrying handle with gun hook. Wheels diameter 200 MM

Reel option: PVC reel, possibility to store up to 25M HP hose. Supplied with the reel equipped on the pump.

Protective side option: for a lateral protection of the body pump. Possibility to customize the pump. Supplied with the sides equipped on the pump.



Demonstration video : Get started pump 25L BP MABI

Wagner pump, Membrane MABI pump & Acide MABI pump

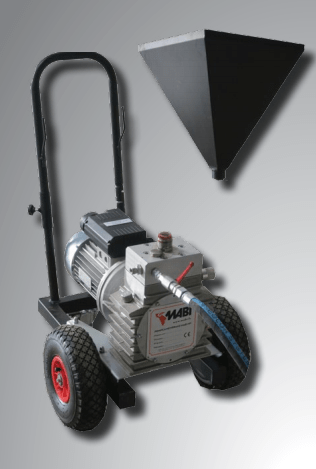

1. Wagner AIRLESS pump, for which use? It is a high pressure piston pump. It is used with all types of treatment products (except chlorine or equivalent), water-repellent, paints and gels. The maximum recommended pressure is 230 BAR with a flow rate from 2 L / MIN to 2.6 L / MIN (other models on request).

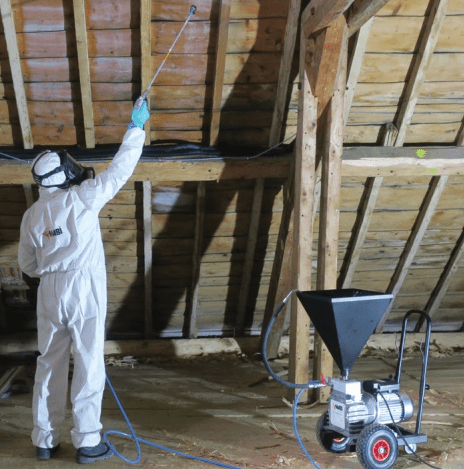

2. The membrane pump is recommended mainly for treatment products (liquid and gel), paints, water repellents and varnishes. With a maximum pressure of 230 BAR and an output flow of 5.5 L / MIN.
Demo video for starting the membrane pump

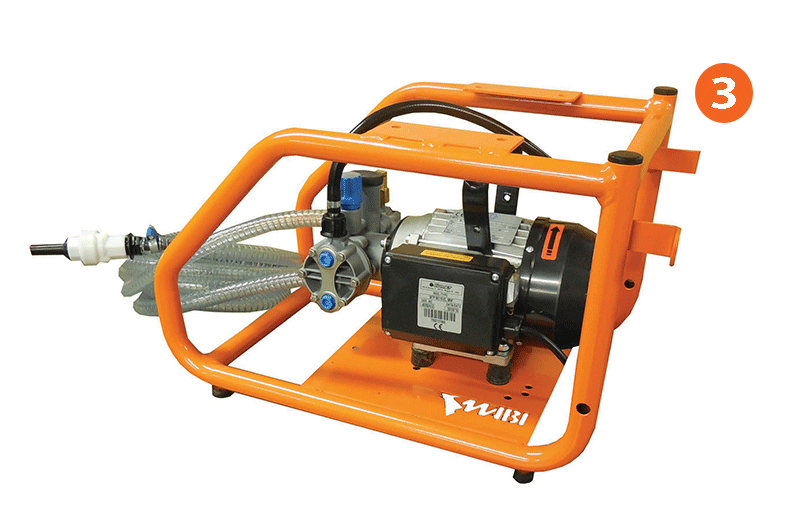

3.The acid pump is recommended for the use of aggressive products: anti-moss / water repellent. Pressure 15 BAR, output flow 10L / MIN

Accessories recommended for injection and spray treatment,

Treatment with injection needs reliable and competitive tools, Mabi offers a large range.

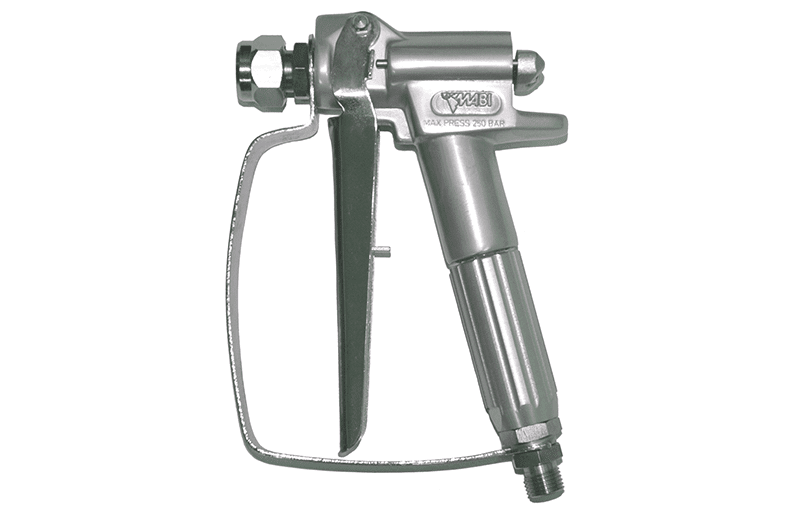

  • Injection/spraying gun

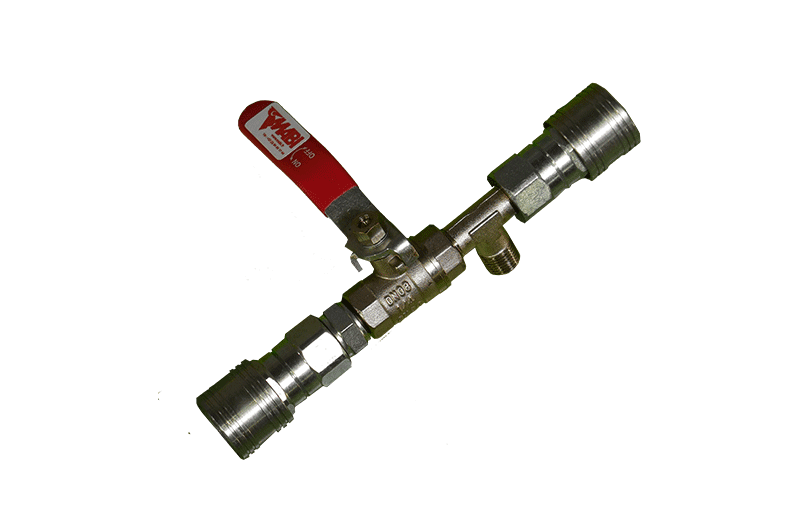

  • A double outlet connection, to be connected at the pump outlet. Time saving: two applicators can use the pump simultaneously.

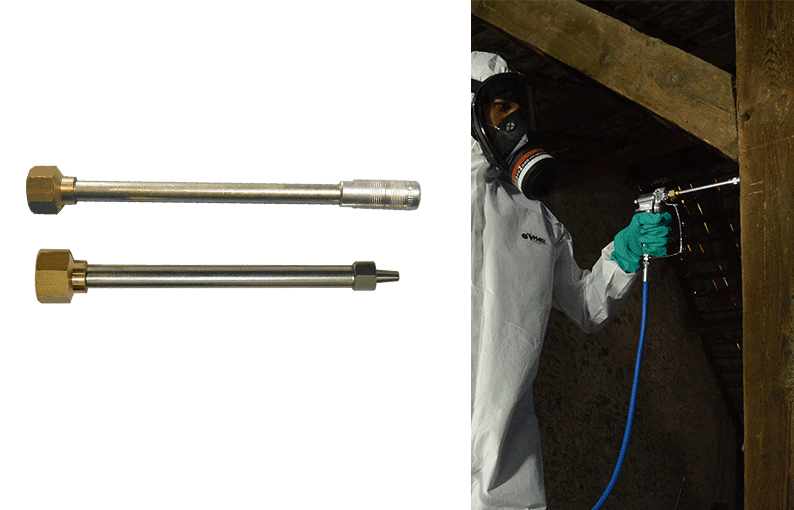

  • Injection tips : Allow High-Pressure and Low-Pressure injection, for injectors with or without head.

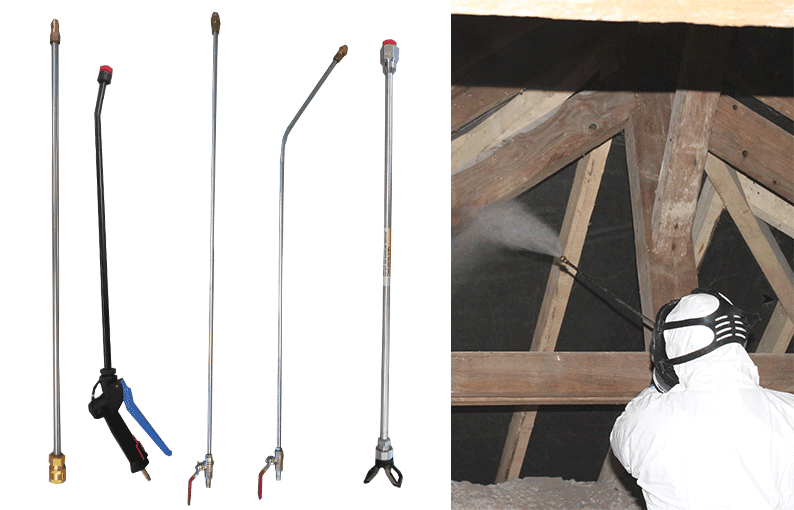

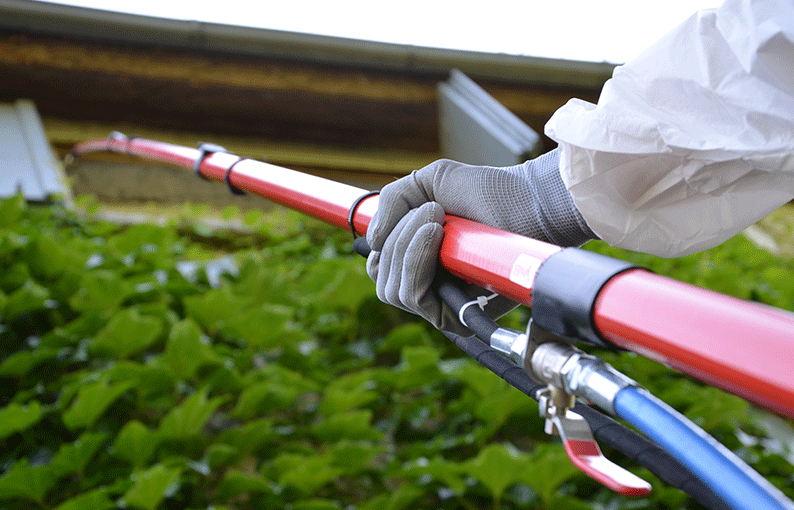

  •  Spray extensions available in different lengths from 30 CM to 2M, with or without a rotating spray nozzle.
  •  Spray nozzles and nozzle holders that fit directly onto the gun or the extension.
  • High and low pressure flowmeters.   All our accessories are available with or without rapid couplings.
    They are delivered assembled and ready to use.
